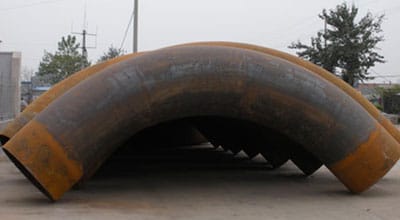

Industrial Long Radius Bend
We are engaged in offering high quality Long Radius Bend that is manufactured by using superior quality raw materials.
These are available in type Seamless / Welded / Fabricated and come in various forms like that of Long Radius Bend,
Piggable Bend, Hot Bend, 3D, 5D, U, J, Customized, Mitered Bend
Technical Information
| Size : |
1/2"NB TO 18"NB ANSI B16.9 |
| Thickness |
Sch 5,10,20,30,40,60,80,100,120,140,160,180,STD,XS,XXS |
| Stainless Steel Bend |
Stainless Steel U Bend – SS U Bend
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Duplex Steel Bend |
ASTM A -B15 UNS,S31803,S32760,S31500 |
| Alloy Steel Bend |
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 |
| Carbon Steel: |
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75,
WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 |
| LTCS Bend |
ASTM A-420 WPL6 |
| Cu Ni Bend |
C70400,C70600(9:10) C71000,C71500(70:
30) C71640 |
| Nickle Bend |
UNS N02200,N0 2201 |
| Monel Bend |
UNS N04400, N05500 |
| Inconel Bend |
UNS N06600, N06601,UNS N06625, N06617,UNS N07718,
N08800,UNS N08810, N08825 |
| Hastealloy Bend |
UNS N06022, N10276,N10665,N06455, |
| Alloy 20 Bend |
Alloy 20 |
| Other Service |
Hot Deep Galvanizing Sand Blasting Etc. |
| Test Certificate |
Manufacturing Test Certificate Asper the EN 10204,3.1B With NACE
MR 01 75 |
| Tolerance |
Minnimum Wall Thinning Rate and quality,no wrinkles,
with required tangent length |
|
|
